55 Inch Outdoor Digital Signage with 3000-4000 Nits Brightness Adobe RGB 98% Color and IP65 Waterproof Advertising Kiosk

MOQ:	1
Price:	542,053-573,205円

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

55 Inch

Brightness:

3000-4000 Nits

Color Gamut:

Adobe RGB 98%

Panel Type:

IPS

Resolution:

1920*1080/3840*2160

Contrast Ratio:

5000:1

Viewing Angle:

178°

Response Time:

5 Ms

Refresh Rate:

60 Hz

Operating Temperature:

-30℃~70℃

Power Consumption:

≥100 W

Input Interface:

Displayport 1.4, HDMI 2.1, USB-C

Material:

Metal Case + Toughened Glass Panel

Weight:

270kg

Lifespan:

50000h

Highlight:

3000-4000 Nits Brightness Outdoor Digital Signage

Adobe RGB 98% Color Advertising Kiosk

IP65 Waterproof Digital Display

Product Description

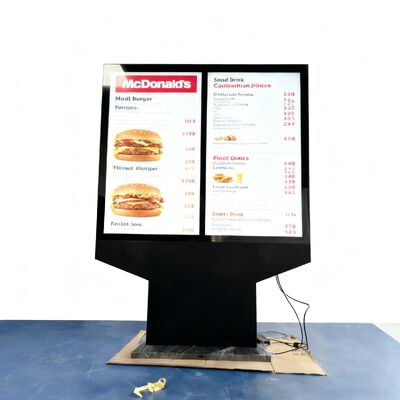

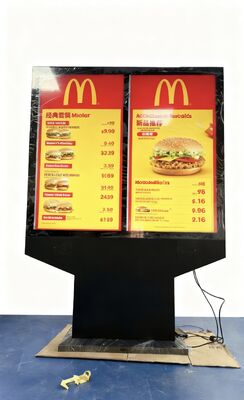

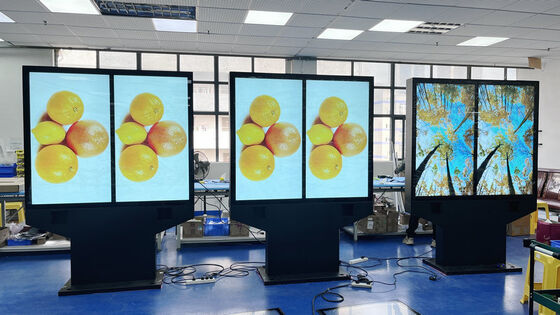

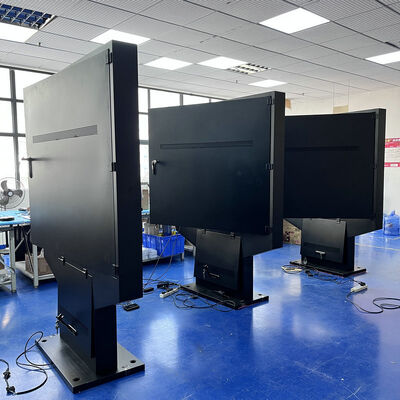

55-Inch Outdoor Dual Screen Digital Signage Kiosk

Professional outdoor digital signage featuring dual IPS panels with 3000-4000 nits brightness and Adobe RGB 98% color gamut for superior outdoor visibility.

Professional Outdoor Digital Signage Solutions

One-Stop OEM/ODM Customization Services - From LCD modules to complete devices, we offer deep customization to empower your brand and application scenarios.

Ultra-High Brightness Performance

Brightness range: 3000-4000 nits or higher available as an option, with auto-brightness adjustment sensor as standard equipment.

Ensures your advertising content shines brilliantly in any lighting conditions from dawn to noon, effectively boosting advertising effectiveness.

Rugged Outdoor Protection

All-metal construction with IP65 dust and water resistance, supporting wide temperature operation from -20°C to 70°C.

Whether facing torrential rain, sandstorms, or extreme temperatures, the equipment operates reliably, significantly reducing maintenance costs and failure rates.

High-Efficiency Heat Dissipation

Utilizes intelligent temperature control system (outdoor unit heat dissipation) combined with internal fan cooling to ensure core components operate at constant temperature.

Energy Efficient & Long-Lasting

Features industrial-grade A+ LCD panels with energy-efficient LED backlighting, delivering Mean Time Between Failures (MTBF) of ≥ 50,000 hours.

Lower energy consumption and longer service life mean higher overall return on investment (ROI).

Technical Specifications

Screen Parameters
Model	TX550M-M02
Backlight type	Direct down LED backlight
Active area	1280×680mm×2
Resolution	1920×1080/3840×2160
Color	16.7M
Pixel pitch	0.630×0.630 mm (H×V)
Brightness	3000-4000 cd/㎡
Contrast ratio	5000:1
Viewing angle	±178°
Response time	6 ms (Typ.)(G to G)
Dimming mode	Automatic Adjustment / Main Board Adjustment
Heat Dissipation Parameters
Heat dissipation	Air Cooling
Operating temperature	-20℃~70℃
Heat dissipation power	100W
Speed control	Auto-adjustment
Protection grade	IP55
Dust filter	Primary filter
Additional Heating	150W/PTC heater option
Shell Parameters
Main structure, Back door, Base material	SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM
Protective glass	5mm Tempered Glass
Waterproof and anti-theft	Waterproof sealing strip/ Anti-theft lock for connecting rod
Painted color	Outdoor white corrugated, Outdoor gray, Outdoor black corrugated
Mainboard Optional
Display Motherboards (Codename M)	2×HDMI-IN(4K@60Hz), USB2.0×1(for upgrading and playing USB disk content)
Android motherboards (Codename A)	CPU RK3568 Cortex-A17 quad-core up to 1.8GHz, DDR DDR-III 2GB (4GB optional), Storage Default standard 8GB EMMC NAND chip (supports up to 128GB), Multiple interface support including LVDS, EDP, HDMI output/input, audio outputs
Packaging Dimensions & Weight

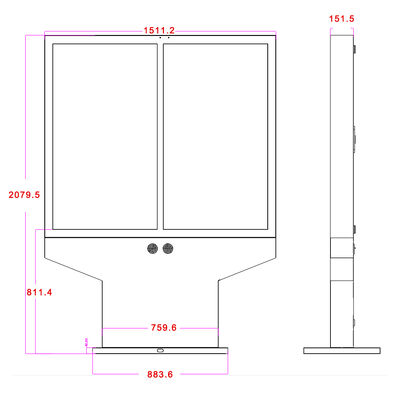

Dimension of whole Machine(mm)	1511×151×2079mm (L×W×T)（Base 500mm）
Dimensions of package(mm)	224×174×40.5CM
Gross weight	277kg
Net weight	192kg
Machine life	＞50000 Hrs
Power Supply
Power Input	AC 100V~240V
Maximum power consumption	≦680W
Standby power	<5W

Comprehensive Custom Solutions

Hardware Customization

Size & Form Factor: Standard sizes from 32" to 98", with support for custom shapes (curved, circular), portrait/landscape orientation, wall-mount/ceiling-mount configurations
Brightness and Resolution: Customizable brightness levels and resolutions (1080P to 4K) tailored to your application requirements
Touch Functionality: Optional outdoor-grade high-brightness infrared touchscreen with 10-point touch support, featuring anti-vandal and scratch-resistant properties

Software and System Customization

Operating System: Choose from Android, Windows, or Linux systems
Playback Software: Supports custom UI/UX branding for your brand, with optional remote cluster management
Interfaces & Expansion: Customizable interfaces (LAN, COM, HDMI) and add-ons (cameras, microphones, card readers) based on requirements

Packing & Shipping

Versatile packaging solutions for all shapes and sizes with our packaging boxes
Multiple options for sea, land, and air shipping for your convenience
Trustworthy and secure wooden crate packaging for extra protection of your goods
Professional packing services to ensure your items are properly secured and ready for transport

Frequently Asked Questions

Q: Are you a factory?

A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!

Q: What's sample production time?

A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly (around 5-6 working weeks).

Q: What's your warranty term?

A: Our product warranty is one year under normal use. All products ordered will be covered by parts replacement warranty. Should any faulty product be identified, we shall ship replacement components free of charge.

Q: What's the outdoor LCD display working temperature range?

A: With air flow cooling system, working temperature range is -10℃ to 60℃.

Q: What's your outdoor LCD screen brightness?

A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel options available.

Q: How to use and install it?

A: To help customers easily use and install, we provide user manuals and instructional videos.

Q: What's the packing?

A: For LCD digital signage, we use thick foam inside with goods packed into strong plywood wooden boxes to ensure safety during export delivery.
