High Brightness LCD Module
Created with Pixso. Outdoor 23.8inch 1000nits Industrial Wide Temperature High Brightness LCD Screen

Outdoor 23.8inch 1000nits Industrial Wide Temperature High Brightness LCD Screen

Brand Name: TX
Model Number: TX238-101
MOQ: 1 Unit
Price: price negotiation
Delivery Time: 15 workdays
Detail Information
Place of Origin:
CHINA
Display Ratio:
16:9
Number Of Pixels:
1920x1080
Active Area:
530.64mm*300.12mm
Bezel Size:
556mm*323.2mm*11.5mm
Contrast Ratio:
1200:1
Viewing Direction:
85/85/85/85 (Typ.)(CR≥10)
Display Mode:
Normally White, Transmissive
Interface Type:
HDMI/VGA
Brightness:
1000nits/1500nits Optional
Packaging Details:
One Piece Screen + Driver Kit
Supply Ability:
500unit/week
Highlight:

1000nits High Brightness LCD Screen

,

Industrial Wide Temperature LCD Screen

,

Outdoor High Brightness LCD Screen

Product Description

Outdoor 23.8inch 1000/1500nits Industrial Wide Temperature High Brightness LCD Screen



Product Description:

Our Sunlight Viewable LCD screens are designed to provide superior image quality even in direct sunlight. With a brightness of up to 1000 cd/m², this screen is one of the best sunlight-visible LCD screens on the market. This makes it an ideal solution for outdoor applications where bright light can affect screen visibility.

It provides clear and vibrant images even in bright sunlight. This makes it ideal for a wide range of applications such as marine, aviation, automotive and more.

All in all, our industrial LCD sunlight readable screen is a reliable and durable solution that is perfect for outdoor applications. With its superior image quality, energy efficiency and compact design, it is one of the best sunlight readable LCD screens on the market. Buy now and experience the difference!

Manufacturer BOE Resolution 1920*1080
Screen Size 23.8inch Display Ratio 16:09
Resolution Abbreviation SXGA Pixel Pitch 0.2745(H) x 0.2745(V)
Panel Type a-Si TFT-LCD , Backlight Type WLED
Display Mode ADS,Normal Black Display, Transmissive Brightness 1000cd
Surface Finish SR16, 3H hard coating, Haze : 25 Color 16.7M,
Contrast Ratio. 1000:01:00 Scanning Frequency 60Hz
Response Time 14 (Typ.)(G to G) ms Interface Type LVDS
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Lamp Position Side entry light source (bottom)
Outdoor visualization Yes Backlight Life 50K Hours
Main Applications Outdoor Display Power Consumption 50W
Display Area 527.04 (H) * 296.46 (V) Operating Temperature -20°C ~ 70°C
Dimension 543.08×316.72×10.2 typ. Storage Temperature -30°C ~ 80°C

Outdoor 23.8inch 1000nits Industrial Wide Temperature High Brightness LCD Screen 0





Customization:


We can provide full customized manufacturing according to your needs, if you need to modify on the basis of our existing styles, we provide the following points can be customized:
1. Driver motherboard: we can provide a variety of interfaces to drive the signal motherboard, of course, we can also provide open Android system motherboard, which allows the screen display has the function of remote control playback content.
2. Light: we can provide most sizes of LCD monitors according to the environmental brightness automatically adjust the screen backlight brightness function, this function can make the screen with better comfort, but also more energy-saving, some of the products can also provide a manual knob to adjust the brightness of the backlight function.
3. Touch: we can provide capacitive/resistive touch lamination, most of the products also support full lamination process.
Of course, in the near future, we will also launch more support for rapid customization of the project for you to choose!



Packing and Shipping:

Product Packaging:
1. A sunlight readable LCD screen

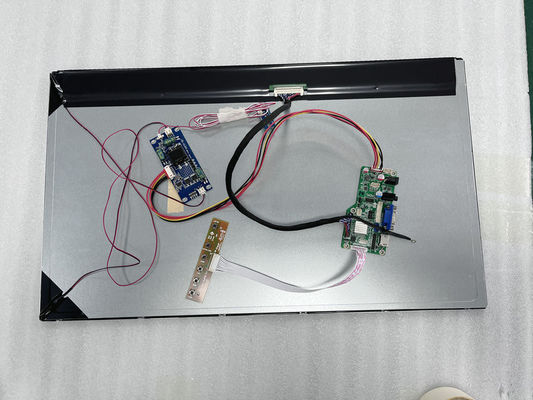

2.Driver kit: signal motherboard, screen cable, backlight circuit board, backlight cable, menu button board, button board cable
The high brightness LCD screen will be carefully packed in a sturdy cardboard box to protect it from any damage during transportation. The carton will be labeled with the product name and necessary handling instructions.


Shipping:
1. Ships within 3-5 business days
2. International shipments are subject to additional charges
3. The product will be securely packaged (using corrugated cardboard + foam) to prevent any damage during transportation
We try to ensure that your Sunlight Readable LCD Screen reaches you quickly and safely. Please note that shipping times may vary depending on your location.
