New in Stock High Brightness LTD121C35S LCD PANEL 12.1inch 800*600 LCD CCFL Screen Display for Industrial 900nits

Name: New in Stock High Brightness LTD121C35S LCD PANEL 12.1inch 800*600 LCD CCFL Screen Display for Industrial 900nits
Brand: Shenzhen Outdoor Special Display Equipment Co., Ltd.
SKU: LTD121C35S
Availability: InStock

Brand Name:	Toshiba Matsushita
Model Number:	LTD121C35S
MOQ:	2
Price:	Price Negotiation
Delivery Time:	7days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Packaging Details:

Box

Product Description

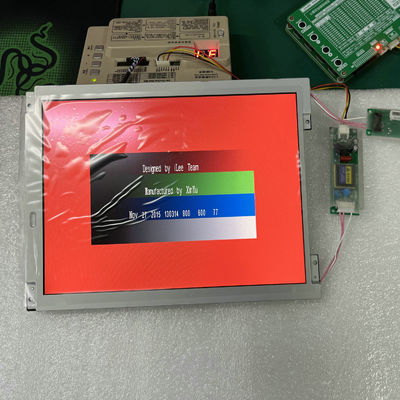

New in Stock High Brightness LTD121C35S LCD PANEL 12.1inch 800*600 LCD CCFL Screen Display for Industrial 900nits 0

LTD121C35S is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Toshiba Matsushita, with a built-in CCFL backlight, without backlight driver, without touch screen. LTD121C35S supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 278.2(W)×215.8(H)×14(D) mm, net weight of 815g (Typ.). As a TN, Normally White, Transmissive LCM product, LTD121C35S can provides 900 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LTD121C35S utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).

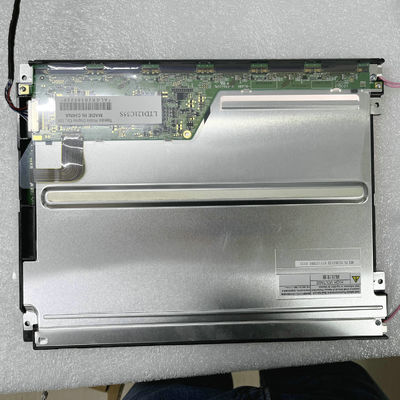

New in Stock High Brightness LTD121C35S LCD PANEL 12.1inch 800*600 LCD CCFL Screen Display for Industrial 900nits 1

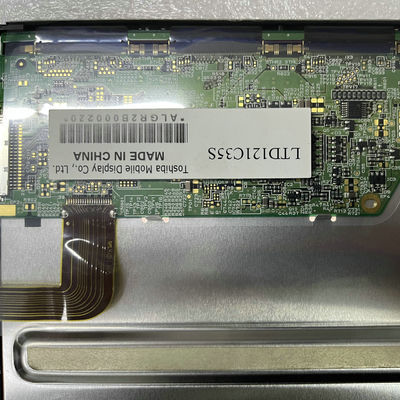

New in Stock High Brightness LTD121C35S LCD PANEL 12.1inch 800*600 LCD CCFL Screen Display for Industrial 900nits 2
