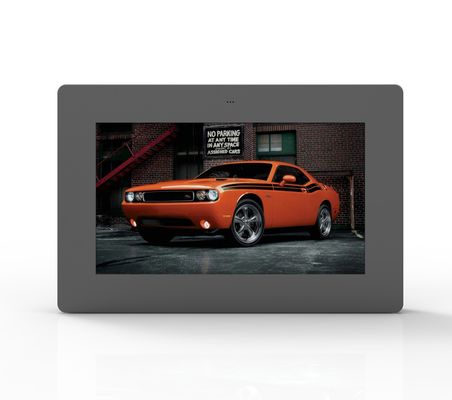

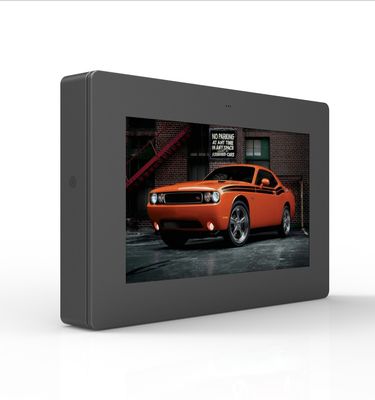

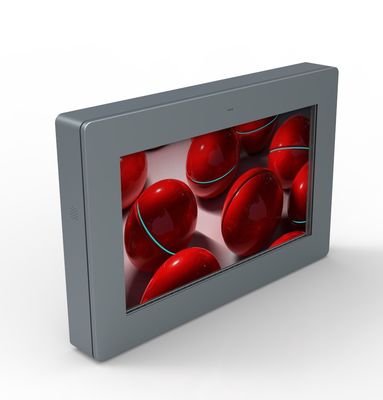

43-Inch Outdoor Digital Signage with 5mm Tempered Glass 50,000 Hours Lifespan and Android OS

Brand Name:	TXDISPLAY
MOQ:	1
Price:	$810-828

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

43 Inch

Resolution:

1920x1080

Brightness:

2000-3000cd/m²

Contrast Ratio:

1200:1

Viewing Angle:

89/89/89/89 (CR≥10)

Response Time:

6ms

Pixel Pitch:

0.1634×0.4902 Mm

Backlight Type:

Direct Down LED

Operating Temperature:

-10℃~50℃

Protection Grade:

IP55

Glass Thickness:

5mm Tempered

Power Consumption:

≤220W

Standby Power:

<5W

Lifespan:

50000 Hours

Material:

Metal Case

Highlight:

5mm Tempered Glass Outdoor Digital Signage

50 000 Hours Lifespan LCD Advertising Display

Android OS Digital Billboard

Product Description

43-Inch 1920x1080 FHD LCD Screen TV Display

High brightness outdoor digital signage display with wall-mounted installation, ideal for industrial billboard advertising and commercial applications.

Key Features

Screen Size: 43 Inch
Brightness: 2000cd/㎡~3000cd/㎡ with ambient light sensing technology
Resolution: 1920*1080 FHD
Mainboard: Android (optional)
Durability: Commercial-grade for long-term stable operation
Glass: 5mm tempered explosion-proof glass for outdoor environments
Installation: Wall-mounted

Technical Specifications

Screen Parameters
Model	TX430M-M02
Backlight type	Direct down LED backlight
Active area	941.184×529.416 mm (H*V)
Resolution	1920*1080
Color	16.7M
Pixel pitch	0.1634×0.4902 mm (H×V)
Brightness	2000-3000cd/㎡
Contrast ratio	1200:1
Viewing angle	89/89/89/89 (Min.)(CR≥10)
Response time	8 (Typ.)(G to G)(B to W) (ms)
Dimming mode	Automatic Adjustment / Main Board Adjustment

Heat Dissipation Parameters
Heat dissipation	Air Cooling
Operating temperature	-10℃~50℃
Heat dissipation power	100W
Speed control	Auto-adjustment
Protection grade	IP55
Dust filter	Primary filter
Additional Heating	150W/PTC heater option

Shell Parameters
Main structure	SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM
Protective glass	5mm Tempered Glass
Waterproof and anti-theft	Waterproof sealing strip/ Anti-theft lock for connecting rod
Painted color	Outdoor white corrugated, Outdoor gray, Outdoor black corrugated

Mainboard Options

Display Motherboards (Codename M):

2*HDMI-IN(4K@60Hz)
USB2.0*1(for upgrading and playing USB disk content)

Android motherboards (Codename A):

CPU RK3288 Cortex-A17 quad-core up to 1.6GHz
DDR DDR-III 2GB (4GB optional)
Storage Default standard 8GB EMMC NAND chip (supports up to 128GB)
LVDS 30-pin industry-standard dual LVDS interface
EDP 20-pin general-purpose four-channel EDP interface
HDMI output HDMI 2.0 standard display interface
HDMI input HDMI 1.4a standard input interface
Line Output Support standard left and right channel line output
Amplifier output 8 ohm-6W dual audio amplifier output

Touch Options:

Nano Touch: 10-point, metal grid nano-touch

Power Supply:

Power Input: AC 100V~240V
Maximum power consumption: ≦220W
Standby power: <5W

Screen Specifications and Performance

Screen Size: 43-inch LG LCD screen
Brightness: 2000cd/㎡~3000cd/㎡, with ambient light sensing technology
Glass: 5mm tempered explosion-proof glass, suitable for outdoor environments

Design and Performance

Cooling System: High-quality cooling fan system to prevent screen blackout during prolonged outdoor use
System: Industrial-grade embedded Android motherboard, supports Wifi, RJ45 interface, Full HD 1920*1080 decoding
Exterior Design: Stylish and elegant standard shell, customizable design according to customer requirements
Temperature Control: Intelligent temperature control system ensures stable operation in high temperatures, activates fans at 40°C

Content Playback and Interaction

Content Playback: Supports a variety of content formats including images, animations, videos
Interactive Features: Touch capabilities can be added for audience interaction, enhancing engagement
Network Management: Smart network system supports synchronized playback across multiple devices nationwide

Display Module Features

Modular Design: Industrial-grade, highly reliable modular design for easy installation and maintenance
Visual Performance: High resolution, high contrast, high brightness, automatic ghosting elimination, UV protection, heat insulation
Color: 16.7M colors, natural and delicate image representation
Environmental Adaptability: Automatic ambient light sensing, intelligent brightness adjustment, screen protection, and energy saving
Durability: 24/7 continuous operation, lifespan exceeds 50,000 hours

Installation and Environmental Specifications

Operating Temperature: Designed for -30~50℃ environments, with high-quality combination fan cooling
Protection: 6mm tempered explosion-proof glass on the front panel
Modular Design: Enhances sustainability and maintainability
Installation: Secured with multiple M18-24 screws embedded in the ground for stability

Applications

Advertising Display: Showcases dynamic advertisements including video ads, animated ads, and static images
Information Dissemination: Used for community announcements, event notifications, or public service messages
Interactive Experience: Touchscreen capabilities facilitate interactive features like maps and product showcases
Brand Promotion: Displays brand stories and product features to boost awareness
Public Spaces: Installed in parks, squares, shopping malls, or commercial districts
