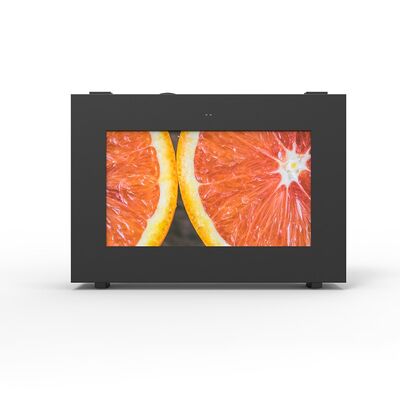

21.5-Inch Outdoor LCD Monitor with 1500nits Brightness IP55 Waterproof Wall Mounted Digital Signage

Brand Name:	TXDISPLAY
MOQ:	1
Price:	CN¥2,246.58-2,383.56

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

21.5 Inch

Brightness:

1500cd/m²

Resolution:

1920*1080

Contrast Ratio:

1000:1

Viewing Angle:

178°(H)/178°(V)

Response Time:

5ms

Refresh Rate:

60Hz

Panel Type:

IPS

Backlight Type:

LED

Input Voltage:

AC100-240V 50/60Hz

Power Consumption:

<80W

Operating Temperature:

-20-45℃

Protection Level:

IP55

Audio Power:

8 Ohms 5 Watts

Glass Thickness:

5mm Tempered

Highlight:

1500nits Brightness Outdoor LCD Monitor

IP55 Waterproof Outdoor Digital Signage

Wall Mounted Outdoor LCD Display

Product Description

22-Inch IP55 Outdoor Wall Mount LCD Monitor

High-brightness 1500nits outdoor display with AG defense, HDR feature, IPS panel, and built-in speaker for demanding commercial applications.

Product Overview

Wall-mounted 21.5" Outdoor IP55 High Brightness LCD Display designed for long-term stable operation in commercial environments.

Key Specifications

Screen Size: 21.5 Inch
Brightness: 1500cd/㎡ with ambient light sensing technology
Resolution: 1920×1080 FHD
Mainboard: Android (optional)
Glass: 5mm tempered explosion-proof glass
Installation: Wall-mounted

Technical Parameters

Basic Parameters

Panel size	21.5 inch LCD panel	Contrast	1000:1
Active area	476.64×268.11 mm (W×H)	Viewing angle	178°(H)/178°(V)
Display ratio	16:9	Response time	5ms
Backlight type	LED	Display color	16.7M
Resolution	1920×1080	Panel brightness	1500cd/m²
Audio power	8 ohms 5 watts	Cooling method	Air cooling
Protective glass	Special tempered	Working temperature	-20℃ to 45℃
Casing color	White (optional)	Installation method	Wall-mounted
Casing material	SPCC + electrostatic spray paint	Environmental dimming	PWM modulation
Power input voltage	AC100V-240V (50/60Hz)	Complete power consumption	＜80W

Function Parameters

Control mode	Remote control/management software control
Input and output interface	SD card×1, HDMI(OUT×1), USB×2, RJ45×1
Motherboard configuration	Android (3288, 4+32)
Protection level	IP55
Network version features	Supports AVI/MP4/MPG/TS/MKV/WMV video formats and JPEG/BMP/PNG/MP3 files. Supports split-screen playback, RSS, PDF, slides, TXT subtitle files, weather forecasts. Supports LAN/WAN, WiFi and 3G. Storage supports SATA hard drives and SD cards. Supports USB update interface and software timed power on/off.
Vulnerability overload surge protection	Support
Power Customization Management	Support 16 segments per day

Design Features

Water Ripple Outdoor Paint

Features corrosion-resistant, friction-resistant outdoor paint pigment that is not easy to scratch. Available in multiple colors with black paint option for dirt resistance.

Anti-theft Buckle Lock

Equipped with two hasp locks and key locks for USB and other interfaces, providing security against theft and unauthorized content tampering.

Dual Cooling Fans

Two cooling fans maintain optimal operating temperature, extending machine lifespan and ensuring safety during extended operation.

Replaceable Dust-proof Cotton

Dustproof cotton at air inlet filters dust and debris, protecting internal components. User-replaceable design for easy maintenance.

Additional Product Images

Content & Interactive Features

Content Playback: Supports images, animations, videos, and multiple media formats
Interactive Features: Optional touch capabilities for enhanced audience engagement
Network Management: Smart network system supports synchronized playback across multiple devices nationwide

Application Uses

Advertising Display: Showcases dynamic video ads, animated ads, and static images to capture attention of passersby and motorists
Information Dissemination: Ideal for community announcements, event notifications, weather forecasts, and traffic updates
Interactive Experience: With touchscreen capabilities, enables interactive maps, product showcases, and interactive games

Frequently Asked Questions

Q: Are you a factory?

A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!

Q: What's sample production time?

A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly (around 5-6 working weeks).

Q: What's your warranty term?

A: Our product warranty is one year under normal use. All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified, we shall ship replacement components free of charge.

Q: What's the outdoor LCD display working temperature range?

A: With air flow cooling system, working temperature range is -10℃ to 60℃.

Q: What's your outdoor LCD screen brightness?

A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.

Q: How to use and install it?

A: We provide user manual and instruction videos to help customers with easy installation and use.

Q: What's the packing?

A: For LCD digital signage, we use thick foam inside with goods packed into strong plywood wooden box to ensure safety during export delivery.
