7 Inch High Brightness 1000cd/m2 IP67 Waterproof Touch Monitor for Outdoor Industrial Applications

Brand Name:	TXDISPLAY
MOQ:	1
Price:	Rp 3.233.266-3.525.636

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

7 Inch

Resolution:

1024*600

Brightness:

1000cd/m2

Viewing Angle:

85/85/85/85 (CR≥10)

Contrast Ratio:

800:1

Response Time:

10/15 Ms

Display Color:

262K/16.7M

Touch Screen:

Capacitive Multi Touch

Interface:

HDMI

Power Supply:

DC 12V

Working Temperature:

-20 ~ 70 °C

Storage Temperature:

-30 ~ 80 °C

Active Area:

154.214×85.92 Mm

Bezel Area:

164.9×100 Mm

Weight:

956g

Highlight:

7 Inch Touch Monitor

1000cd/m2 LCD Monitor

IP67 Waterproof Digital Signage

Product Description

7-Inch Marine High Brightness Outdoor Waterproof Touch Monitor

This industrial-grade 7-inch LCD monitor delivers exceptional performance in demanding outdoor and marine environments with its high brightness, waterproof construction, and rugged design.

Key Specifications

Size	7-inch
Resolution	1024×600
Luminance	1000 Nits
LCD Type	Industrial LCD panel
Active Area	154.214(W)×85.92(H) mm
Aspect Ratio	16:9
Protection Grade	IP67

Product Features

High brightness 1000 nits display for outdoor visibility
IP67 waterproof and dustproof rating
Industrial-grade construction for harsh environments
Fully enclosed design for maximum protection
Crystal clear 1024×600 resolution
Versatile mounting options

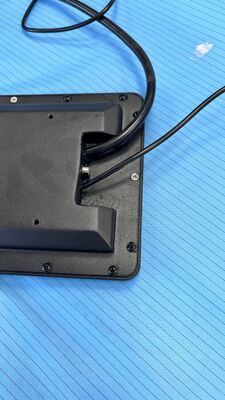

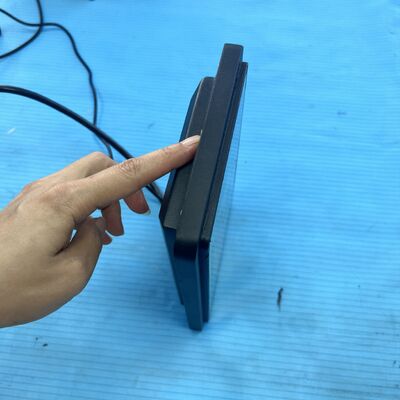

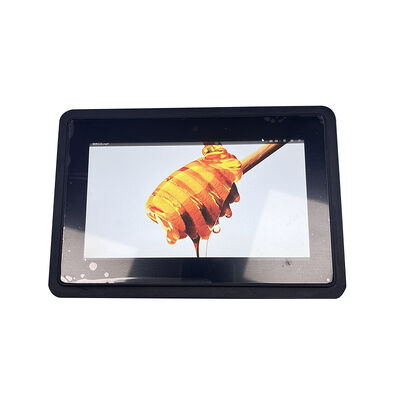

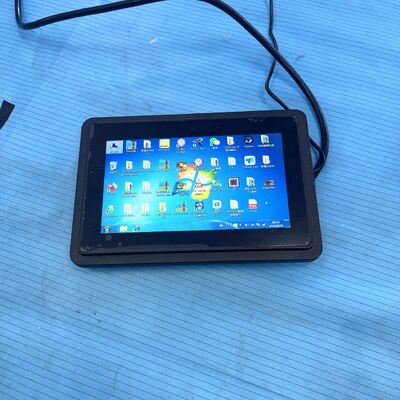

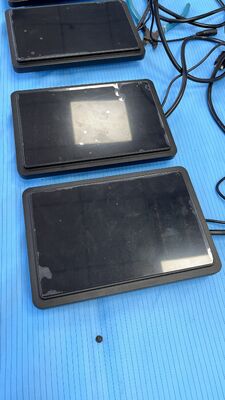

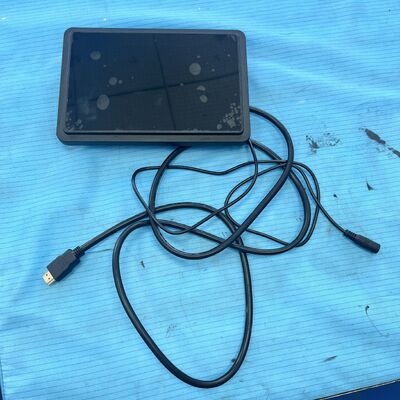

Product Views

Detailed Features

Crystal Clear Resolution: The 1024×600 resolution delivers vibrant colors and sharp details, ensuring premium viewing experience for industrial applications requiring high precision displays.

Exceptional Brightness Performance: With maximum brightness of 1000 nits, this monitor maintains excellent display quality even in strong light conditions, making content clearly readable in direct sunlight.

IP67 Waterproof Rating: Engineered to withstand harsh environments, this monitor is fully waterproof and dustproof, making it ideal for outdoor applications.

Rugged Design: Built to endure shocks, vibrations, and extreme temperatures, perfect for outdoor use in construction, transportation, and field operations.

Versatile Mounting Options: Designed for easy installation with adaptable mounting for diverse industrial environments.

Complete Accessories: Includes all necessary accessories for immediate use, reducing installation time and costs.

Technical Parameters

Type	a-Si TFT-LCD
Backlight	LED
Pixel Arrangement	RGB vertical stripes
Pixel Pitch	0.1506×0.1432 mm [170PPI]
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio	800:1
Response Time	10/15 (Typ.)(Tr/Td) ms
Display Color	262K/16.7M (6-bit / 8-bit)
Operating Temperature	-20 ~ 70 °C
Interface	HDMI
Input Voltage	DC12V
Weight	956g (Typ.)

Applications

Machine Tools Lathe Medical Equipment Marine Vessels Video Intercom Systems Monitoring Systems Industrial Control Panels Medical Display Terminals Interactive Kiosks

Successful Cases

Display performance under direct sunlight outdoors at 2-3 PM on sunny days in Shenzhen

32-Inch High-brightness LCD Display

Portable Aerial Photography Ground Station

14.1-inch High Brightness LCD Panel

Laptop High Brightness Display

Outdoor New Energy Charging Pile

High Brightness Window LCD Display

Frequently Asked Questions

Q: Are you a factory?

A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!

Q: What's sample production time?

A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly (around 5-6 working weeks).

Q: What's your warranty term?

A: Our product warranty is one year under normal use. All products ordered will be covered by a parts replacement warranty.

Q: What's the outdoor LCD display working temperature range?

A: With air flow cooling system, working temperature range is -10℃ to 60℃.

Q: What's your outdoor LCD screen brightness?

A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel options available.

Q: How to use and install it?

A: We provide user manuals and instructional videos to help customers with easy installation and use.

Q: What's the packing?

A: For LCD digital signage, we use thick foam inside with goods packed into strong plywood wooden boxes to ensure safety during export delivery.
