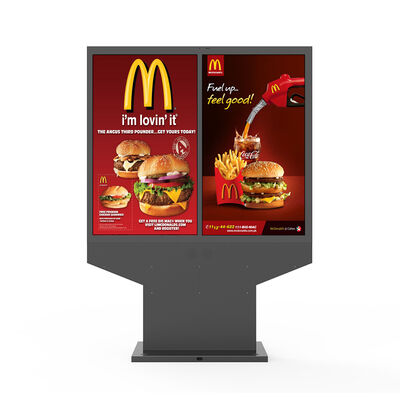

55 Inch IP65 Waterproof Outdoor Digital Signage with 2000~4000 cd/m² Brightness LCD Digital Display

Name: 55 Inch IP65 Waterproof Outdoor Digital Signage with 2000~4000 cd/m² Brightness LCD Digital Display
Brand: Shenzhen Outdoor Special Display Equipment Co., Ltd.
SKU: TX550M-F02
Price: 24.00 USD
Availability: InStock

Brand Name:	TXDISPLAY
Model Number:	TX550M-F02
MOQ:	1
Price:	CN¥23,835.57-25,205.43

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

55 Inch

Brightness:

2000~4000 Cd/m²

Resolution:

1920x1080 (FHD)

Contrast Ratio:

5000:1

Response Time:

6 Ms

Viewing Angle:

±178°

Pixel Pitch:

0.630×0.630 Mm

IP Rating:

IP65

Operating Temperature:

-10℃~50℃

Power Supply:

100V~240V AC

Maximum Power:

≤740W

Glass Thickness:

5mm Tempered

Refresh Rate:

60Hz

Lifespan:

≥50,000 Hrs

Weight:

192kg (net)

Highlight:

IP65 Waterproof Outdoor Digital Signage

2000~4000 cd/m² Brightness LCD Digital Display

55 Inch Digital Advertising Board

Product Description

Commercial 55-Inch Outdoor LCD Digital Signage Display

High-performance 2K/4K IP65-rated outdoor digital display designed for restaurants, coffee shops, drive-thrus, and shopping malls.

Product Overview

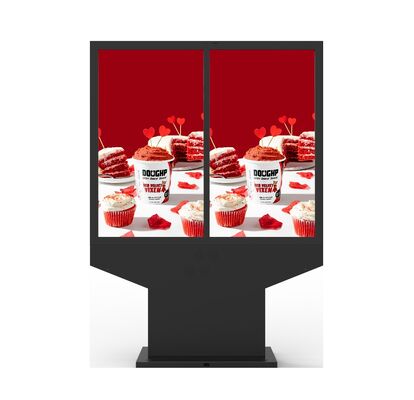

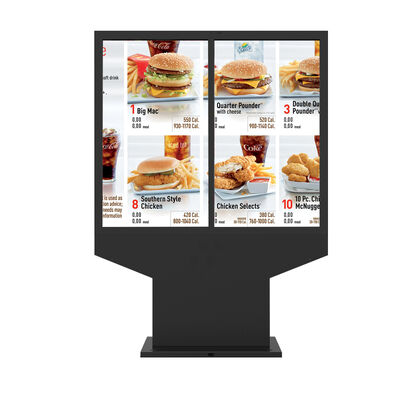

55-inch double-screen outdoor IP65 high-brightness LCD digital signage with robust construction for commercial applications.

Screen Size: 55 Inch
Brightness: 2000-4000 cd/㎡ with ambient light sensing technology
Resolution: 1920×1080 FHD / 4K UHD
Color Options: Gray, black, white, with custom colors available
Mainboard: Android/Windows/Linux (optional)
Glass: 5mm tempered explosion-proof glass
Installation: Wall-mounted

Screen Specifications & Performance

55-inch LG LCD screen
Brightness: 2000-4000 cd/㎡ with ambient light sensing
5mm tempered explosion-proof glass for outdoor environments

Design & Performance Features

High-quality cooling fan system prevents screen blackout during prolonged use
Industrial-grade embedded Android motherboard with WiFi and RJ45 interface
Full HD 1920×1080 decoding capability
Stylish standard shell with customizable design options
Intelligent temperature control activates fans at 40°C

Display Module Features

Industrial-grade modular design for easy installation and maintenance
High resolution, contrast, and brightness with automatic ghosting elimination
UV protection and heat insulation
16.7M colors for natural and delicate image representation
Automatic ambient light sensing with intelligent brightness adjustment
24/7 continuous operation with lifespan exceeding 50,000 hours

Environmental Design & Installation

Operating temperature: -30°C to 50°C
High-quality combination fan cooling system
6mm tempered explosion-proof glass front panel
Modular design enhances sustainability and maintainability
Secured with multiple M18-24 screws embedded in ground

Single motherboard configuration: Both LCD screens display identical content

Dual motherboard configuration: Each LCD screen displays independent content

Content Playback & Interactive Features

Supports images, animations, videos, and various content formats
Optional touch capabilities for audience interaction
Smart network system supports synchronized playback across multiple devices
Nationwide content management capabilities

Technical Specifications

Parameter Category	Specification	Model: TX550M-F02
Backlight type	Direct down LED backlight
Active area	1209.6(W)×680.4(H) mm
Resolution	3840×2160/1920×1080
Color	16.7M
Pixel pitch	0.630×0.630 mm (H×V)
Brightness	2000-4000 cd/㎡ Optional
Contrast ratio	5000:1
Viewing angle	±178°
Response time	6 ms (Typ.)(G to G)
Dimming mode	Automatic Adjustment / Main Board Adjustment
Heat dissipation	Air Cooling
Operating temperature	-10℃~50℃
Heat dissipation power	100W
Protection grade	IP55
Shell material	SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM
Protective glass	5mm Tempered Glass
Power Input	AC 100V~240V
Maximum power consumption	≤740W
Standby power	<5W
Machine life	>50,000 Hours

Security & System Features

Equipped with anti-theft lock for enhanced security protection, preventing illegal disassembly or theft. Ideal for public places and vulnerable environments.

Supports multiple operating systems including Android, Windows, and Linux with flexible application adaptation. Built-in WiFi and 4G signal connection for convenient data transmission and remote management.

Cooling & Weather Resistance

Industrial-grade fan and temperature sensing system intelligently adjusts fan operation based on real-time temperature to prevent performance degradation. Specially designed drainage system prevents moisture accumulation and protects internal components.

High-quality outdoor paint and stainless steel screws maintain excellent appearance and performance during long-term outdoor exposure. Standard VESA wall mounting holes simplify installation on various surfaces.

Frequently Asked Questions

Q: Are you a factory?

A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!

Q: What's sample production time?

A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly (around 5-6 working weeks).

Q: What's your warranty term?

A: Our product warranty is one year under normal use. All products ordered will be covered by parts replacement warranty. Should any faulty product be identified, we will ship replacement components free of charge.

Q: What's the outdoor LCD display working temperature range?

A: With air flow cooling system, working temperature range is -10℃ to 60℃.

Q: What's your outdoor LCD screen brightness?

A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel options available.

Q: How to use and install it?

A: We provide user manuals and instructional videos to help customers with easy installation and use.

Q: What's the packing?

A: For LCD digital signage, we use thick foam inside with goods packed into strong plywood wooden boxes to ensure safety during export delivery.
