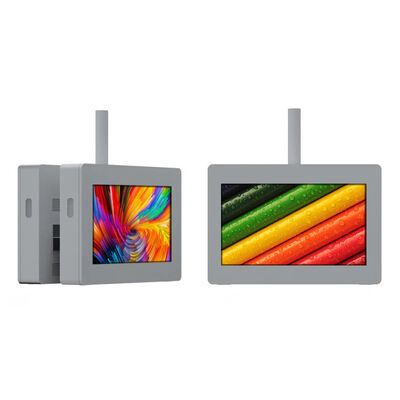

21.5 Inch Outdoor LCD Display with 1500cd/m² Brightness and IP65 Waterproof Digital Signage

MOQ:	1
Price:	$690-718

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

21.5 Inch

Brightness:

1500cd/m²

Resolution:

1920*1080

Contrast Ratio:

1000:1

Viewing Angle:

178° (H/V)

Response Time:

5ms

Panel Type:

IPS

Backlight Type:

Edge-Lit LED

Power Consumption:

50-80 W

Input Voltage:

AC100-240V 50/60Hz

Operating Temperature:

-20℃~45℃

Protection Level:

IP55

Glass Thickness:

5mm Tempered

Audio Power:

8 Ohms 5 Watts

Cooling Method:

Air Cooling

Highlight:

21.5 Inch Outdoor LCD Display

1500cd/m² Brightness Digital Signage

IP65 Waterproof Outdoor Digital Signage

Product Description

21.5" Outdoor IP55 High Brightness LCD Display

Key Features

21.5 Inch Full HD IPS LCD Display
1500 cd/m² High Brightness with Ambient Light Sensing
1920×1080 Resolution for Crystal Clear Imagery
Android Mainboard (Optional Configuration)
Commercial-Grade Durability for Long-Term Stable Operation
5mm Tempered Explosion-Proof Glass for Outdoor Environments
Wall-Mounted Installation
IP55 Weatherproof Rating

Technical Specifications

Basic Parameters

Parameter	Specification
Panel Size	21.5 inch LCD Panel
Active Area	476.64×268.11 mm (W×H)
Display Ratio	16:9
Resolution	1920×1080 FHD
Brightness	1500 cd/m²
Contrast Ratio	1000:1
Viewing Angle	178° (H) / 178° (V)
Response Time	5ms
Audio Power	8 ohms 5 watts
Working Temperature	-20°C to 45°C
Power Consumption	<80W

Function Parameters

Feature	Specification
Control Mode	Remote Control / Management Software Control
Motherboard Configuration	Android (3288, 4+32)
Input/Output Interfaces	SD Card×1, HDMI (OUT×1), USB×2, RJ45×1
Protection Level	IP55
Power Customization	Support 16 Segments per Day

Design Features

Outdoor Water Ripple Paint

Specialized outdoor paint pigment provides corrosion resistance, friction resistance, and scratch protection. Available in multiple colors with black being dirt-resistant and fashionable.

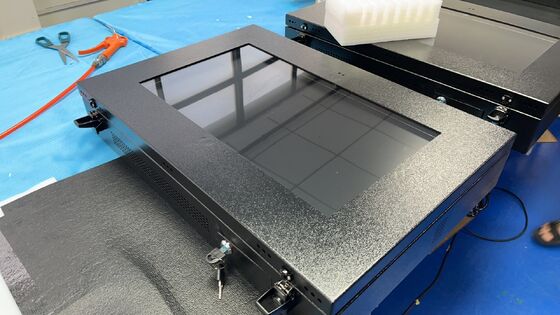

Anti-Theft Buckle Lock

Equipped with two hasp locks and key locks for USB interfaces, preventing theft and unauthorized content tampering in outdoor environments.

Dual Cooling Fans

Two integrated cooling fans maintain optimal operating temperature, extending machine lifespan and ensuring operational safety.

Dust-Proof Cotton Design

Replaceable dust-proof cotton at air intake filters dust and debris, protecting internal components and extending machine life with user-serviceable maintenance.

Content & Network Capabilities

Supports multiple high-definition video formats (AVI, MP4, MPG, TS, MKV, WMV)
Compatible with image formats (JPEG, BMP, PNG) and audio (MP3)
Multi-split screen playback capability
RSS, PDF, slides, and TXT subtitle file support
Weather forecast and information display features
LAN/WAN, WiFi and 3G network connectivity
Large capacity SATA hard drives and SD card storage support
USB update interface for flexible offline updates
Software timed power on/off functionality
Windows-compatible management software (2000/XP/7/8)

Application Scenarios

Advertising Display

Ideal for dynamic video advertisements, animated ads, and static images to capture attention from pedestrians and motorists.

Information Dissemination

Perfect for community announcements, event notifications, public service messages, weather forecasts, and traffic updates.

Interactive Experience

Optional touchscreen capabilities enable interactive features like touchscreen maps, product showcases, and interactive games for enhanced user engagement.

Frequently Asked Questions

Are you a factory?

Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China.

What's the sample production time?

Standard outdoor display models: 2-3 weeks. Customized projects: 5-6 weeks (confirmed accordingly).

What's your warranty term?

One year warranty under normal use with free replacement of faulty components.

What's the outdoor LCD display working temperature range?

With air flow cooling system: -10°C to 60°C.

What's your outdoor LCD screen brightness?

Available in 1500 nits to 5000 nits high brightness LCD panels.

How to use and install it?

User manual and instructional videos provided for easy installation and operation.

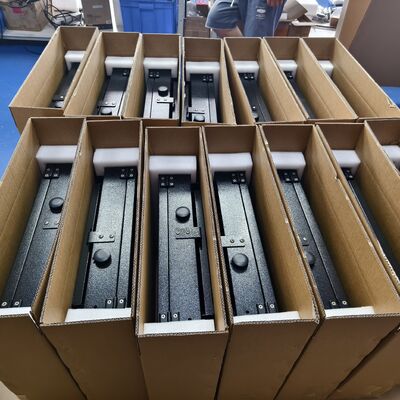

What's the packing?

Thick foam inside strong plywood wooden boxes ensure safety during export delivery.
