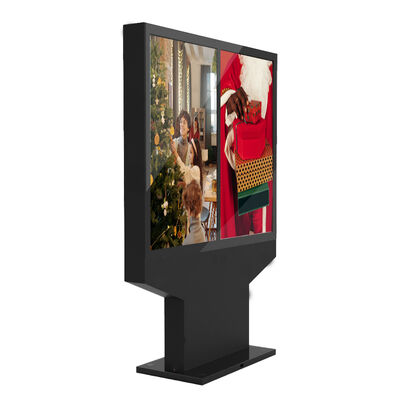

55inch 4000nits Brightness IP65 Waterproof Outdoor Digital Signage LCD Advertising Display for Drive-thru Menu Boards

Name: 55inch 4000nits Brightness IP65 Waterproof Outdoor Digital Signage LCD Advertising Display for Drive-thru Menu Boards
Brand: Shenzhen Outdoor Special Display Equipment Co., Ltd.
SKU: TX5503002
Price: 24.00 USD
Availability: InStock

Brand Name:	TXDISPLAY
Model Number:	TX5503002
MOQ:	1
Price:	CN¥23,835.57-25,205.43

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

55 Inch

Resolution:

3840X2160, 1920*1080

Brightness:

4000nits

Contrast Ratio:

3000:1

Color Depth:

8-Bit

Response Time:

6ms

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Pixel Pitch:

0.630×0.630 Mm (H×V)

Operating Temperature:

-20 °C ~ 70 °C

IP Rating:

IP65

Material:

All-Metal Structure, Metal Case + Toughened Glass Panel

Weight:

270kg

Voltage:

100V-240V

Power Consumption:

≦680W

Lifespan:

50K (Min.) Hours

Highlight:

4000nits Brightness Outdoor Digital Signage

IP65 Waterproof Digital Menu Board

55inch Size LCD Advertising Display

Product Description

Custom 2x55 Inch 1080P Waterproof IP65 Outdoor Digital Menu Boards

Professional outdoor digital signage manufacturer offering comprehensive OEM/ODM customization solutions for retail stores and drive-thru applications.

Ultra-High Brightness Display

3000-4000 nits brightness with auto-brightness adjustment sensor ensures clear visibility even in direct sunlight, maximizing advertising effectiveness from dawn to dusk.

Rugged Outdoor Protection

All-metal construction with IP65 dust and water resistance, operating reliably in temperatures from -20°C to 70°C. Built to withstand torrential rain, sandstorms, and extreme conditions.

Intelligent Thermal Management

Advanced air cooling system with intelligent temperature control ensures core components maintain optimal operating temperatures for long-term stability and reliability.

Energy Efficient Operation

Industrial-grade A+ LCD panels with energy-efficient LED backlighting deliver MTBF ≥ 50,000 hours, providing lower energy consumption and higher return on investment.

Technical Specifications

Screen Parameters

Parameter	Specification
Model	TX550M-M02
Backlight Type	Direct down LED backlight
Active Area	1280×680mm×2
Resolution	1920×1080/3840×2160
Brightness	3000-4000 cd/㎡
Contrast Ratio	5000:1
Viewing Angle	±178°
Response Time	6 ms (Typ.)

Heat Dissipation & Environmental

Parameter	Specification
Heat Dissipation	Air Cooling
Operating Temperature	-20℃ to 70℃
Protection Grade	IP55
Additional Heating	150W PTC heater (optional)

Construction & Materials

Component	Specification
Main Structure	SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating (T=1.5MM)
Protective Glass	5mm Tempered Glass
Security Features	Waterproof sealing strip / Anti-theft lock for connecting rod

Power & Dimensions

Parameter	Specification
Power Input	AC 100V-240V
Maximum Power Consumption	≤680W
Standby Power	<5W
Machine Dimensions	1511×151×2079mm (L×W×T)
Net Weight	192kg
Machine Life	>50,000 Hours

Customization Options

Hardware Customization

Size & Form Factor: Standard sizes 32" to 98", custom shapes (curved, circular), portrait/landscape orientation
Brightness & Resolution: Customizable brightness levels and resolutions (1080P to 4K)
Touch Functionality: Optional outdoor-grade infrared touchscreen with 10-point touch support
Mounting Options: Wall-mount, ceiling-mount, floor-standing configurations

Software & System Customization

Operating Systems: Android, Windows, or Linux systems
Playback Software: Custom UI/UX branding with remote cluster management
Interfaces & Expansion: Customizable LAN, COM, HDMI interfaces
Add-ons: Cameras, microphones, card readers based on requirements

Packaging & Shipping

Professional packaging solutions including secure wooden crate packaging for maximum protection during sea, land, and air transport. Comprehensive packing services ensure items are properly secured and ready for delivery.

Frequently Asked Questions

Manufacturing & Samples

Q: Are you a factory? A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China.

Q: What's sample production time? A: Standard models: 2-3 weeks. Custom projects: 5-6 weeks.

Product Specifications

Q: What's your warranty term? A: One year parts replacement warranty under normal use.

Q: What's the working temperature range? A: -20℃ to 70℃ with air flow cooling system.

Q: What's your outdoor LCD screen brightness? A: 1500nits to 5000nits high brightness options available.

Usage & Support

Q: How to use and install it? A: Comprehensive user manuals and instructional videos provided.

Q: What's the packing? A: Thick foam insulation inside strong plywood wooden boxes for export safety.
