49 Inch Ultra Thin 3000cd/m2 Brightness IP55 Waterproof Outdoor Digital Signage LCD Advertising Display

Name: 49 Inch Ultra Thin 3000cd/m2 Brightness IP55 Waterproof Outdoor Digital Signage LCD Advertising Display
Brand: Shenzhen Outdoor Special Display Equipment Co., Ltd.
SKU: TX490M-M02
Price: 1.00 USD
Availability: InStock

Brand Name:	TXDISPLAY
Model Number:	TX490M-M02
MOQ:	1
Price:	$1,480-1,699

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Screen Size:

49 Inch

Brightness:

2000cd/m2~3000cd/m2

Resolution:

1920*1080

Contrast Ratio:

5000:1

Viewing Angle:

±178°

Response Time:

6 Ms

Operating Temperature:

-10℃~50℃

Protection Grade:

IP55

Glass Thickness:

5mm Tempered

Power Consumption:

≦220W

Standby Power:

<5W

Weight:

49kg

Lifespan:

50000 Hrs

Backlight Type:

Direct Down LED

Material:

Metal Case

Highlight:

3000cd/m2 Brightness Outdoor Digital Signage

IP55 Waterproof LCD Advertising Display

49 Inch Screen Waterproof Digital Billboard

Product Description

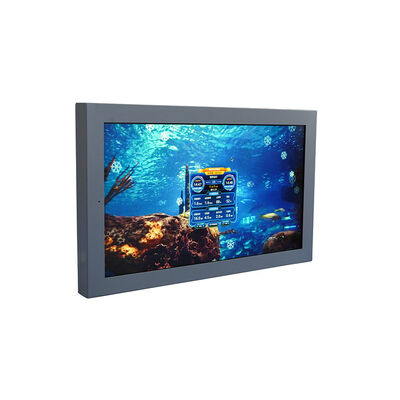

Ultra Thin 49 Inch Outdoor IP55 Waterproof Advertising Display

High-brightness 3000cd/m² LCD digital signage designed for demanding outdoor advertising applications with full weather protection.

Key Specifications

Display Features

Screen Size: 49 Inch
Brightness: 2000-3000cd/㎡ with ambient light sensing technology
Resolution: 1920×1080 Full HD
Contrast Ratio: 5000:1
Viewing Angle: ±178°
Response Time: 6ms (G to G)
Color Support: 16.7 Million colors

Environmental Protection

IP Rating: IP55 waterproof and dustproof
Operating Temperature: -10℃ to 50℃
Front Glass: 5mm tempered explosion-proof glass
Lifespan: >50,000 hours

Technical Parameters

Parameter Category	Specification	Details
Screen Parameter	Model	TX490M-M02
Screen Parameter	Backlight type	Direct down LED backlight
Screen Parameter	Active area	1077.6×607.6mm
Screen Parameter	Pixel pitch	0.630×0.630 mm (H×V)
Heat Dissipation	Heat dissipation	Air Cooling
Heat Dissipation	Heat dissipation power	100W
Heat Dissipation	Additional Heating	150W/PTC heater option
Shell Parameters	Main structure	SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM
Shell Parameters	Protective glass	5mm Tempered Glass
Power Supply	Power Input	AC 100V~240V
Power Supply	Maximum power consumption	≤220W
Power Supply	Standby power	<5W
Physical Dimensions	Dimension of whole Machine	2050.1×687×93.8mm (L×W×T) with 500mm base
Physical Dimensions	Net weight	49kg

Motherboard Options

Display Motherboards (Codename M)

2×HDMI-IN (4K@60Hz)

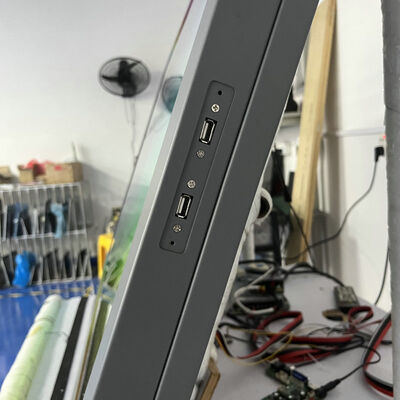

USB 2.0×1 (for upgrading and playing USB disk content)

Android Motherboards (Codename A)

CPU: RK3288 Cortex-A17 quad-core up to 1.6GHz
DDR: DDR-III 2GB (4GB optional)
Storage: Default 8GB EMMC NAND chip (supports up to 128GB)
LVDS: 30-pin industry-standard dual LVDS interface
EDP: 20-pin general-purpose four-channel EDP interface
HDMI Output: HDMI 2.0 standard, up to 2016P output
HDMI Input: HDMI 1.4a standard, up to 1080P input
Audio: 8 ohm-6W dual audio amplifier output

Touch Options

Nano Touch: 10-point, metal grid nano-touch (optional)

Performance & Design Features

Advanced Cooling System

High-quality cooling fan system prevents screen blackout during prolonged outdoor use
Intelligent temperature control activates fans at 40°C
Air cooling with auto-adjustment speed control

Industrial-Grade Construction

Industrial-grade embedded Android motherboard
Supports WiFi and RJ45 interface
Full HD 1920×1080 decoding capability
Stylish and elegant standard shell, customizable design available

Content Management & Interactive Features

Content Playback

Supports images, animations, videos, and various content formats
Smart network system for synchronized playback across multiple devices
Nationwide content management capabilities

Interactive Capabilities

Optional touch capabilities for audience interaction
Enhances engagement and attraction
Facilitates interactive maps, product showcases, and games

Display Module Technology

Modular Design

Industrial-grade, highly reliable modular design
Easy installation and maintenance
Enhances sustainability and maintainability

Visual Performance

High resolution, high contrast, high brightness
Automatic ghosting elimination technology
UV protection and heat insulation
16.7 million colors for natural and delicate image representation

Environmental Adaptability

Automatic ambient light sensing
Intelligent brightness adjustment
Screen protection and energy saving features
24/7 continuous operation capability

Installation & Environmental Design

Environmental Specifications

Operating Temperature: Designed for -30°C to 50°C environments
Front Protection: 6mm tempered explosion-proof glass

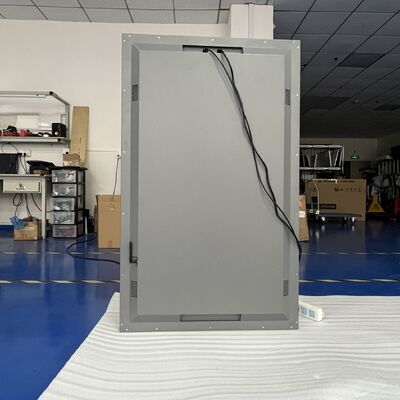

Back Design: Non-waterproof design for heat dissipation

Installation Features

Wall-mounted installation
Secured with multiple M18-24 screws embedded in the ground
Waterproof sealing strip and anti-theft lock for connecting rod
Stable and secure mounting for outdoor environments

Application Uses

Advertising Display: Capable of showcasing dynamic advertisements including video ads, animated ads, and static images to capture attention of passersby and motorists.
Information Dissemination: Used for posting community announcements, event notifications, or public service messages like weather forecasts and traffic updates, providing practical information services to residents.
Interactive Experience: With optional touchscreen capabilities, facilitates interactive features such as touchscreen maps, product showcases, and interactive games, enhancing user engagement.
Brand Promotion: As a pivotal channel for brand promotion, displays brand stories, product features, and brand imagery, boosting brand awareness and recognition.
Public Spaces: Installed in parks, squares, shopping malls, or commercial districts, entertains and informs the public while enhancing venue appeal.

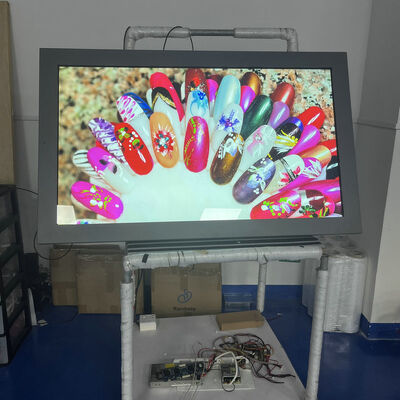

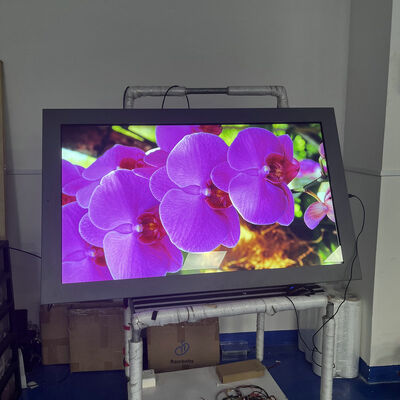

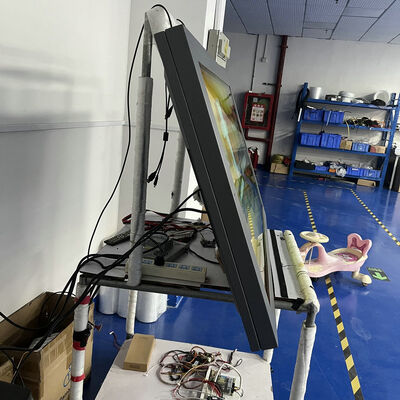

Product Details Gallery

Frequently Asked Questions

Q: Are you a factory?

A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!

Q: What's sample production time?

A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly (around 5-6 working weeks).

Q: What's your warranty term?

A: Our product warranty is one year under normal use. All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, we shall ship replacement components free of charge.

Q: What's the outdoor LCD display working temperature range?

A: With air flow cooling system, working temperature range is -10℃ to 60℃.

Q: What's your outdoor LCD screen brightness?

A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel options available.

Q: How to use and install it?

A: To help customers easily use and install, we provide user manuals and instructional videos.

Q: What's the packing?

A: For LCD digital signage, we use thick foam inside with goods packed into strong plywood wooden boxes to ensure safety during export delivery.
